ANSI Centrifugal Process Pumps

Barmesa ANSI pumps are a type of single-stage end suction centrifugal pump designed to the ANSI/ASME B73.1 standard. With identical envelope dimensions used by all manufacturers, the ANSI standard provides the industry with interchangeable process pumps and parts.

Economical Drop-in Replacements for Competitive Brands

With a proven durability track record for corrosive and abrasive fluids, Barmesa 911 Series ANSI pumps are an economical drop-in exchange for Goulds and Griswold ANSI pumps and parts.

ANSI Pump Features:

Over 30 ANSI models including stainless steel pumps in a wide range of size and design options.
Construction available in ductile iron, stainless steel and CD4MCu.
Capacities to 4,000 gpm, Heads to 390 ft, Pressure to 285 psig, and Temperature to 350˚F.
Fully open impellers in choice of ductile iron, stainless steel and CD4MCu.
Variety of seal options including Inpro VBX Labyrinth Seals.
Meets and exceeds ANSI B73.1 standards.
Available in pump-only or complete with motor.
Repair parts readily available at competitive pricing.
Lead time from US factory 1 to 12 weeks depending on size.

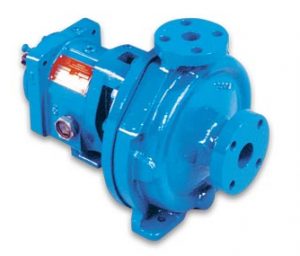

ANSI Pump 911 L

ANSI Pump 911 M

ANSI Pump 911 L

911 ANSI Centrifugal Pump Specifications

911 Model:	Size:	ANSI Designation:	Discharge Diameter: (in)	Suction Diameter: (in)	Apprx. Weight: (lbs.)
911 S	1×1.5-6	AA	1	1.5	84
	1.5×3-6	AB	1.5	3	93
	2×3-6	–	2	3	95
	1×1.5-8	AA	1	1.5	99
	1.5×3-8	AB	1.2	3	108
911 M & 911 L	3×4-7	A70	3	4	220
	2×3-8	A60	2	3	200
	3×4-8	A70	3	4	220
	3×4-8G	A70	3	4	220
	1×2-10	A05	1	2	200
	1.5×3-10	A50	1.5	3	220
	2×3-10	A60	2	3	229
	3×4-10	A70	3	4	265
	3×4-10H	A40	3	4	304
	4×6-10	A80	4	6	304
	4×6-10H	A80	4	6	304
	1.5×3-13	A20	1.5	3	245
	2×3-13	A30	2	3	276
	3×4-13	A40	3	4	331
	4×6-13	A80	4	6	407
911 LX	6×8-13	A90	6	8	560
	8×10-13	A100	8	10	670
	6×8-15	A110	6	8	610
	8×10-15	A120	8	10	741
	8×10-15G	A120	8	10	1,565
